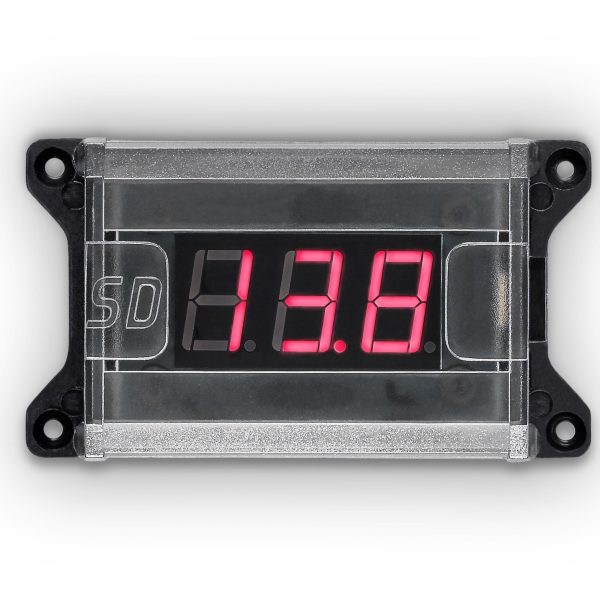

| Content | Can be used for 12V, 24V or HV systems
Overvoltage protection
4 wires (1 used only in case of HV system)
Input: 5 V – 30 V
Range (Low Voltage): 5 V- 30 V
Range (High Voltage): 50V – 440 V
Precision (Low Voltage) : +-0,1 V
Precision (High Voltage) : +- 1V
Current Draw (Max): 30mA
Dimensions (H X W X L): 4.5 x 8 x 2 cm |
| Test Voltage |
14.4 |
| Channels |
4 |
| Cont Wattage @ 4ohm |
250x4 / 700x2 |
| Cont Wattage @ 2ohm |
350x4 |
| Max Current Draw - Amperage |
110 |
| S/N Ratio |
>105dB |
| Input Voltage Sensitivity |
8 - 0.2 |
| Pass-Through Output |
No |
| Remote Subwoofer Control |
Yes |
| Power Wire Guage In |
4 |
| Speaker Wire Gauge Out |
10 |
| Dimensions: in |
11.81 x 6.88 x 2.14 |
| Dimensions: mm |
300 x 175 x 54.5 |
| Shipping Weight - lbs |
11 |
|
| Test Voltage |
14.4V |
| Channels |
1 |
| Cont Wattage @ 4ohm |
210 |
| Cont Wattage @ 2ohm |
380 |
| Cont Wattage @ 1ohm |
500 |
| Dynamic Wattage |
800 |
| Max Current Draw - Amperage |
80A |
| S/N Ratio |
>80dB |
| Input Voltage Sensitivity |
4V-0.1V |
| Pass-Through Output |
Yes |
| Remote Subwoofer Control |
Yes |
| Power Wire Guage In |
4 |
| Speaker Wire Gauge Out |
12 |
| Dimensions: in |
7.87 x 4.92 x 1.85 |
| Dimensions: mm |
200 x 125 x 47 |
|
| Test Voltage |
12/14/16 |
| Channels |
1 |
| Cont Wattage @ 4ohm |
3,900x1@14V |
| Cont Wattage @ 2ohm |
7,100x1@14V |
| Cont Wattage @ 1ohm |
8,000x1@12V, 11,500x1@14v, 14,300x1@16V |
| Dynamic Wattage |
20,000x1@16v |
| Max Current Draw - Amperage |
2000 |
| S/N Ratio |
>85dB |
| THD |
<0.03 |
| Input Voltage Sensitivity |
6 - 0.2 |
| Pass-Through Output |
Yes |
| Remote Subwoofer Control |
Yes |
| Power Wire Guage In |
3 x 0 |
| Speaker Wire Gauge Out |
10 |
| Dimensions: in |
37 x 10.5 x 3 |
| Dimensions: mm |
940 x 268 x 78.5 |
| Shipping Weight - lbs |
60lbs |
|
| Test Voltage |
14.4V |
| Channels |
2 |
| Cont Wattage @ 4ohm |
150x2 / 480x1 |
| Cont Wattage @ 2ohm |
175x2 |
| Max Current Draw - Amperage |
50A |
| S/N Ratio |
>86dB |
| THD |
<0.18% |
| Input Voltage Sensitivity |
8V-0.25V |
| Pass-Through Output |
Yes |
| Remote Subwoofer Control |
Yes (sold separately) |
| Power Wire Guage In |
4 |
| Speaker Wire Gauge Out |
12 |
| Dimensions: in |
14x7x2 |
| Dimensions: mm |
348x175x54 |
|
| Test Voltage |
12 / 14.4 |
| Channels |
1 |
| Cont Wattage @ 4ohm |
N/A |
| Cont Wattage @ 2ohm |
N/A |
| Cont Wattage @ 1ohm |
700x1@12V / 900x1@14.4V |
| Max Current Draw - Amperage |
100 |
| S/N Ratio |
>100dB |
| THD |
<0.02% |
| Input Voltage Sensitivity |
8 - 0.2 |
| Pass-Through Output |
Yes |
| Remote Subwoofer Control |
Yes |
| Power Wire Guage In |
1 x 0 |
| Speaker Wire Gauge Out |
10 |
| Dimensions: in |
11 x 6.9 x 2.03 |
| Dimensions: mm |
27.94 x 17.53 x 5.16 |
| Shipping Weight - lbs |
10 |
|
Reviews
There are no reviews yet.
