Category: Amplificatoare auto

Description

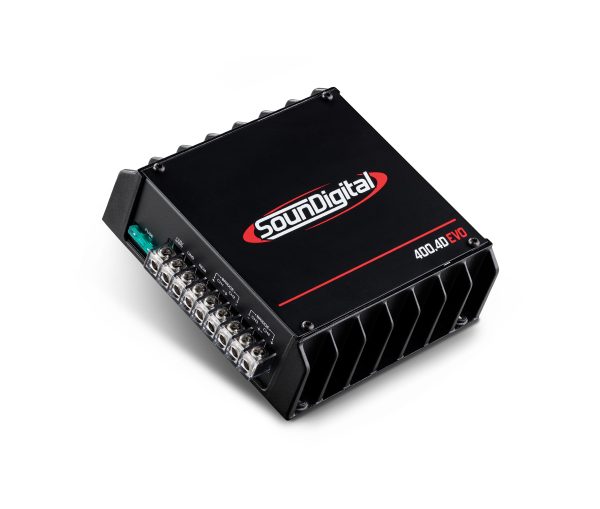

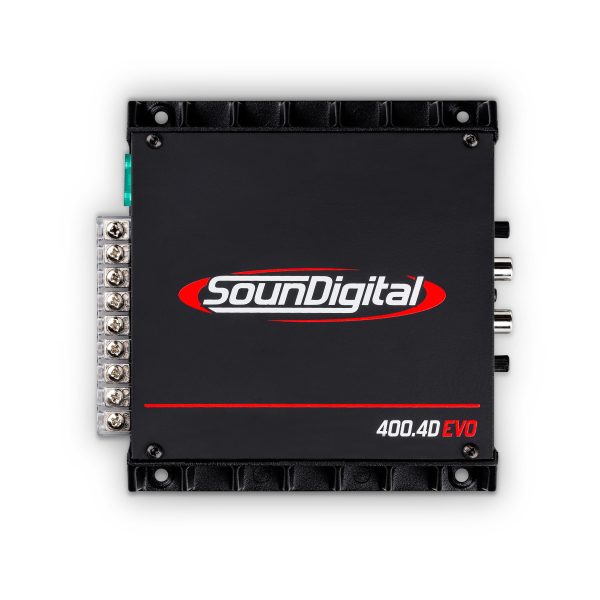

400.4D EVO
Power @ 12.6V @ 2Ω: 4 x 100 W RMS
Power @ 12.6V @ 4Ω: 4 x 55 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 200 W RMS
Bridge Power @ 12.6V @ 8Ω: 2 x 110 W RMS
Power @ 14.4V @ 2Ω: 4 x 131 W RMS
Power @ 14.4V @ 4Ω: 4 x 72 W RMS
Power @ 14.4V @ 8Ω: 4 x 40 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 261 W RMS
Bridge Power @ 14.4V @ 8Ω: 2 x 144 W RMS
Working Voltage: 9V – 16V
Current Draw (Music): 20A
Current Draw (Max): 40A
Recommended Fuse: 20A
THD + N – (rated power): 0.08%
THD + N – (50% of rated power): 0.006%
THD + N – (10% of rated power): 0.009%
Damping Factor: <200
SNR: 88dB
Frequency Response: 5Hz – 20kHz
Input Sensitivity: 0.5V to 6V
HPF: 80Hz
LPF: 80Hz
Dimensions (L x W x H) 5.87 x 5.43 x 1.81 cm
Dimensions (L x W x H) 14.4 x 13.8 x 4.6 cm
Weight: 0.7 kg

Additional information

Producator	Sound Digital

Reviews

There are no reviews yet.

Be the first to review “Amplificator Sound Digital 400.4D EVO”

Compară rapid

Setari Amplificator Sound Digital 400.4D EVO Elimină Amplificator DD Audio D6.500 Elimină Amplificator DD Audio C4.100 Elimină Amplificator DD Audio DM1500 Elimină Amplificator DD Audio M3C Elimină Amplificator DD Audio A4 Elimină

Nume Amplificator Sound Digital 400.4D EVO Elimină Amplificator DD Audio D6.500 Elimină Amplificator DD Audio C4.100 Elimină Amplificator DD Audio DM1500 Elimină Amplificator DD Audio M3C Elimină Amplificator DD Audio A4 Elimină

Imagine

SKU SD400.4D D6.500 C4.100 DM1500 M3C A4

Rating

Preț 810,00 lei 2.670,00 lei 1.300,00 lei 1.760,00 lei 5.570,00 lei 770,00 lei

Stoc

In stoc

Valabilitate In stoc In stoc In stoc In stoc In stoc In stoc

Adaugă în coș

Add to cart

Descriere D6.500-- RMS 100Wx4 + RMS 2x200w 4ohm 6-Channel 100w x 4ch @ 4Ω DM1500 - 1500w 1Ω Class-D monoblock M3c - 3800w x 1 @ 14v A4 - 60W x 4 @ 4Ω

Content

400.4D EVO Power @ 12.6V @ 2Ω: 4 x 100 W RMS Power @ 12.6V @ 4Ω: 4 x 55 W RMS Bridge Power @ 12.6V @ 4Ω: 2 x 200 W RMS Bridge Power @ 12.6V @ 8Ω: 2 x 110 W RMS Power @ 14.4V @ 2Ω: 4 x 131 W RMS Power @ 14.4V @ 4Ω: 4 x 72 W RMS Power @ 14.4V @ 8Ω: 4 x 40 W RMS Bridge Power @ 14.4V @ 4Ω: 2 x 261 W RMS Bridge Power @ 14.4V @ 8Ω: 2 x 144 W RMS Working Voltage: 9V – 16V Current Draw (Music): 20A Current Draw (Max): 40A Recommended Fuse: 20A THD + N – (rated power): 0.08% THD + N – (50% of rated power): 0.006% THD + N – (10% of rated power): 0.009% Damping Factor: <200 SNR: 88dB Frequency Response: 5Hz – 20kHz Input Sensitivity: 0.5V to 6V HPF: 80Hz LPF: 80Hz Dimensions (L x W x H) 5.87 x 5.43 x 1.81 cm Dimensions (L x W x H) 14.4 x 13.8 x 4.6 cm Weight: 0.7 kg

Test Voltage	14.4
Channels	6
Cont Wattage @ 4ohm	(CH 1-4) 100x4 / 320x2 \| (CH 5-6) 200x2 / 560x1
Cont Wattage @ 2ohm	(CH 1-4) 160x4 / (CH 5-6) 280x2
Max Current Draw - Amperage	120
S/N Ratio	>90dB
THD	<0.2%
Input Voltage Sensitivity	6V ~ 0.2V
Pass-Through Output	No
Remote Subwoofer Control	No
Power Wire Guage In	4
Speaker Wire Gauge Out	12
Dimensions: in	13.7 x 4.9 x 1.8
Dimensions: mm	350 x 125 x 47

Test Voltage	14.4V
Channels	4
Cont Wattage @ 4ohm	100x4 / 300x2
Cont Wattage @ 2ohm	150x4
Max Current Draw - Amperage	65A
S/N Ratio	>86dB
THD	<0.20%
Input Voltage Sensitivity	8V-0.25V
Pass-Through Output	Yes
Remote Subwoofer Control	Yes
Power Wire Guage In	4
Speaker Wire Gauge Out	12
Dimensions: in	14.5x7x2
Dimensions: mm	368x175x54

Test Voltage	14.4
Channels	1
Cont Wattage @ 4ohm	580
Cont Wattage @ 2ohm	1000
Cont Wattage @ 1ohm	1500
Dynamic Wattage	2300
Max Current Draw - Amperage	180
S/N Ratio	>85dB
Input Voltage Sensitivity	4 - 0.1V
Pass-Through Output	Yes
Remote Subwoofer Control	Yes
Power Wire Guage In	1
Speaker Wire Gauge Out	10
Dimensions: in	13.78 x 7 x 2
Dimensions: mm	350 x 175 x 55
Shipping Weight - lbs	7

Test Voltage	12/14.4
Channels	1
Cont Wattage @ 4ohm	N/A
Cont Wattage @ 2ohm	N/A
Cont Wattage @ 1ohm	2,400x1@12V / 3,800x1@14.4V
Dynamic Wattage	5,000x1
Max Current Draw - Amperage	400
S/N Ratio	>85
THD	<0.02%
Input Voltage Sensitivity	5 - 0.15
Pass-Through Output	Yes
Remote Subwoofer Control	Yes
Power Wire Guage In	1 x 0
Speaker Wire Gauge Out	10
Dimensions: in	19.68 x 9.05 x 2.57
Dimensions: mm	500 x 230 x 65.5
Shipping Weight - lbs	23 lbs

Test Voltage	14.V
Channels	2, 3, or 4
Cont Wattage @ 4ohm	55W x 4CH, 130W x 2CH
Cont Wattage @ 2ohm	75W x 4CH
Cont Wattage @ 1ohm	NA
Max Current Draw - Amperage	30
S/N Ratio	>95dB
THD	0.05%
Input Voltage Sensitivity	0.2V-6V
Pass-Through Output	No
Remote Subwoofer Control	No
Power Wire Guage In	Spade Terminal
Speaker Wire Gauge Out	Spade Terminal
Dimensions: in	9.44in x 9.44in x 2.08in
Dimensions: mm	240mm x 240mm x 53mm
Shipping Weight - lbs	7

Greutate N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Informații suplimentare
