Procesor audio Mosconi Gladen DSP 8to12 AEROSPACE

• Stand Alone Processor
• The Digital Signal Processor with 8 inputs and 12 outputs Sample rate 192KHz / 24bit.
• Digital input and output (Toslink)
• Coax input (RCA) and BT input (with MOS-BTS)
• Highest resolution, e.g. time delay in 0,02 msec/step
• All settings in real-time
• USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps
• Low-Level or High-Level input with auto-sense (only by High-Level)
• Aux input with auto-sense for stereo signal
• Hands-free and mobile navigation
• 4 presets
• Mixer matrix to realize all possible mixtures and couple input and output channels as desired
• Intuitive User Interface and video tutorials to avoid an instruction book.
• Operating also without mouse, only with keys for an easy adjusting in the car
• DSP Technology made by cooperation MOSCONI-GLADEN

• INPUT MODE: Low Level (LL) / High Level (HL)
• INPUT IMPEDANCE: > 12KOhm (LL) / 47Ohm (HL)
• INPUT SENSITIVITY: 1.2Vrms ÷ 8Vrms (LL) / 3Vrms ÷ 20Vrms (HL)
• INPUT VOLTAGE REGULATION: -16.5dB ÷ 0dB
• MAX OUTPUT SIGNAL: 8Vrms
• OUTPUT IMPEDANCE: 600 Ohm
• THD DISTORTION: <0.003% @ 4Vrms
• FREQUENCY RESPONSE: 10Hz ÷ 63KHz (within -0.1dB)
• CHANNEL SEPARATION: >90dB (@ 1KHz)
• SUPPLY VOLTAGE: 11V ÷ 15V
• CURRENT CONSUMPTION: 0.9A @ 12V
• AUTOSENSE: OFF / BTL / SE
• REMOTE OUTPUT: 100mA max.
• COMMUNICATION PERIPHERALS: USB,RCD/RC-MINI (optional), MOS-BTM (optional)
• SIZE: 200 x 125 x 40 mm (including fixing feet)

• Interfata grafica pentru PC si Smartphone
• Setari personalizabile : Equalizer, Crossovers, si Time Alignment
• Compatibil Bluetooth (cu pachetul optional BTR )
• Control prin telecomanda (cu pachetul optional BTR )
• 6 presetari EQ personalizabile
• 4 canale cu intrari High-level
• 4 canale cu intrari RCA Low-level
• Insumarea intrarilor
• 10 iesiri RCA Low-Level (8 programabile + 2 de trecere)
• Sasiu de Aluminu

• Stand Alone Processor
• The Digital Signal Processor with 8 inputs and 12 outputs
• Sample rate 96KHz / 24bit.
• Digital input and output (Toslink)
• Coax input (RCA) and BT input (with MOS-BTS)
• Highest resolution, e.g. time delay in 0,02 msec/step
• All settings in real-time
• USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps
• Low-Level or High-Level input with auto-sense (only by High-Level)
• Aux input with auto-sense for stereo signal
• Hands-free and mobile navigation
• 4 presets
• Mixer matrix to realize all possible mixtures and couple input and output channels as desired
• Intuitive User Interface and video tutorials to avoid an instruction book.
• Operating also without mouse, only with keys for an easy adjusting in the car
• DSP Technology made by cooperation MOSCONI-GLADEN

• INPUT MODE: Low Level (LL) / High Level (HL)
• INPUT IMPEDANCE: > 12KOhm (LL) / 47Ohm (HL)
• INPUT SENSITIVITY: 1.2Vrms ÷ 8Vrms (LL) / 3Vrms ÷ 20Vrms (HL)
• INPUT VOLTAGE REGULATION: -16.5dB ÷ 0dB
• MAX OUTPUT SIGNAL: 8Vrms
• OUTPUT IMPEDANCE: 600 Ohm
• THD DISTORTION: <0.003% @ 4Vrms
• FREQUENCY RESPONSE: 10Hz ÷ 63KHz (within -0.1dB)
• CHANNEL SEPARATION: >90dB (@ 1KHz)
• SUPPLY VOLTAGE: 11V ÷ 15V
• CURRENT CONSUMPTION: 0.9A @ 12V
• AUTOSENSE: OFF / BTL / SE
• REMOTE OUTPUT: 100mA max.
• COMMUNICATION PERIPHERALS: USB,RCD/RC-MINI (optional), MOS-BTM (optional)
• SIZE: 200 x 125 x 40 mm (including fixing feet)

• Stand Alone Processor
• Like a DSP 4to6 but with digital input output
• Digital inputs optical and coaxial SP-Dif
• SP-Dif output (optical) with volume-regulated signal from channel 1+2.

Note: with the digital master/slave possibility you can create a 12, 16, 24, 32…channel DSP! (Digital out and then digital in)

• The Digital Signal Processor with 4 inputs and 6 outputs
• Highest resolution, e.g. time delay in 0,02 msec/step, Q in steps of 0.001
• Parametric and Graphic EQ with up to 30 (para-graphical) bands per channel pair
• All settings in real-time
• USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps
• Low-Level or High-Level input with auto-sense (only by High-Level)
• Aux input with auto-sense for stereo signal
• Hands-free and mobile navigation
• 4 presets
• Mixer matrix to realize all possible mixtures and couple input and output channels as desired
• Intuitive User Interface and video tutorials to avoid an instruction book.
• Operating also without mouse, only with keys for an easy adjusting in the car
• DSP Technology made by cooperation MOSCONI-GLADEN

• External display/controller for presets and main controls (RDC)
• Externat control for Volume MASTER & Volume SUB
• External switch for choosing the presets

Principalele diferențe între DSP 6TO8, DSP 4TO6 și DSP 4TO6 SP-DIF :

• INPUT MODE: Low Level (LL) / High Level (HL)
• INPUT IMPEDANCE: > 10Kohm (LL) / 47ohm (HL)
• INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 5Vrms ÷ 20Vrms (HL)
• INPUT VOLTAGE REGULATION: -12dB ÷ 0dB
• MAX OUTPUT SIGNAL: 4Vrms
• OUTPUT IMPEDANCE: 50 ohm
• THD DISTORTION:
• FREQUENCY RESPONSE: 20Hz ÷ 20KHz (within -0.1dB)
• CHANNEL SEPARATION: >75dB (@ 1KHz)
• SUPPLY VOLTAGE: 11V ÷ 15V
• CURRENT CONSUMPTION: 0.5A @ 12V
• GROUND ISOLATION vs CAR BODY: 1Kohm
• AUTOSENSE: two operative modes (yes, HL only)
• REMOTE OUTPUT: 130mA max.
• COMMUNICATION PERIPHERALS: on-board USB, Bluetooth socket, Remote controller
• SIZE: 150 x 125 x 40 mm (including fixing feet)

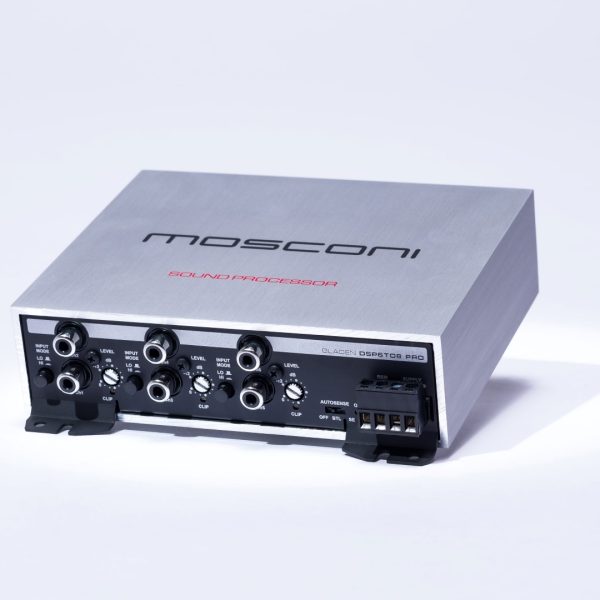

• Stand Alone Processor
• The Digital Signal Processor with 6 inputs and 8 outputs
• Sample rate 48KHz / 24bit.
• Highest resolution, e.g. time delay in 0,02 msec/step
• All settings in real-time
• USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps
• Low-Level or High-Level input with auto-sense (only by High-Level)
• Aux input with auto-sense for stereo signal
• Hands-free and mobile navigation
• 4 presets
• Mixer matrix to realize all possible mixtures and couple input and output channels as desired
• Intuitive User Interface and video tutorials to avoid an instruction book.
• Operating also without mouse, only with keys for an easy adjusting in the car
• DSP Technology made by cooperation MOSCONI-GLADEN

• External display/controller for presets and main controls

• INPUT MODE: Low Level (LL) / High Level (HL)
• INPUT IMPEDANCE: > 10Kohm (LL) / 47ohm (HL)
• INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 5Vrms ÷ 20Vrms (HL)
• INPUT VOLTAGE REGULATION: -12dB ÷ 0dB
• MAX OUTPUT SIGNAL: 8Vrms
• OUTPUT IMPEDANCE: 50 ohm
• THD DISTORTION: <0.003% @ 1Vrms
• FREQUENCY RESPONSE: 20Hz ÷ 20KHz (within -0.1dB)
• CHANNEL SEPARATION: >75dB (@ 1KHz)
• SUPPLY VOLTAGE: 11V ÷ 15V
• CURRENT CONSUMPTION: 0.5A @ 12V
• GROUND ISOLATION vs CAR BODY: 1Kohm
• AUTOSENSE: BTL or SE (HL only)
• REMOTE OUTPUT: 130mA max.
• COMMUNICATION PERIPHERALS: on-board USB, Bluetooth socket, Remote controller
• SIZE: 150 x 125 x 40 mm (including fixing feet)
