Numar canale	4
Producator	Gladen, Mosconi
Putere RMS	4x200W
Dimensiune	590x200x50 mm

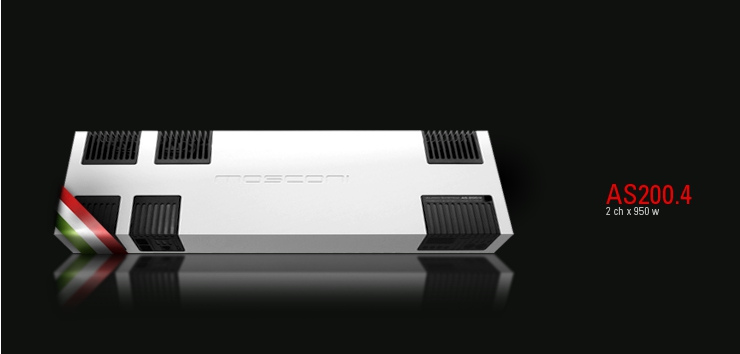

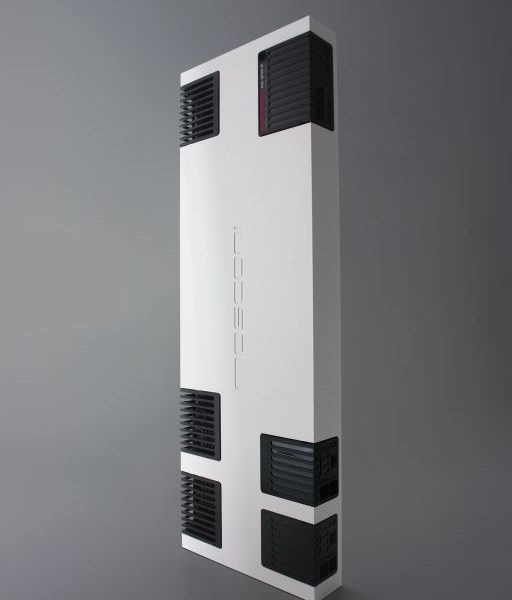

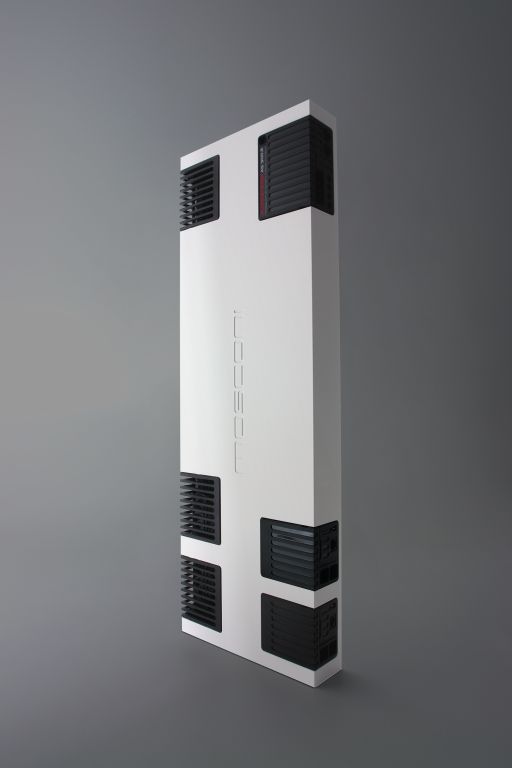

Amplificator auto Mosconi Gladen AS 200.4 (24 volti)

Name: Amplificator auto Mosconi Gladen AS 200.4 (24 volti)
SKU: GAS200.4-24v
Availability: InStock

SKU: GAS200.4-24v

In stoc

4.655,00 lei

Amplificator de mare putere pe 4 canale, cu tehnologie SMD, 4x 200 Watt RMS / 4 ohm, versiune de 24V, dimensiune: 590x200x50 mm

In stoc

Ți-a plăcut acest produs? Adaugă acum la favorite și urmărește produsul.

Adaugă la lista de dorințe

Prețuri Mici

Garantăm cel mai mic preț

Potrivire garantată

Întotdeauna piesa corectă

Experți interni

Cunoaștem produsele noastre.

Returnări ușoare

Rapid și fără bătăi de cap.

Category: Amplificatoare auto

Description

Amplificator Mosconi Gladen AS 200.4 (24 volti)

A / B class amplifier for the highest possible sound quality
4 channel amplifier available in Silver and White finishing
Power Rating: 200 Watt per channel @ 4 Ohm < 1% THD+N
Sn Ratio: > 86 dBA (ref: 1 Watt into 4 Ohm)

Specificații:

200 Watt per channel @ 4 Ohm
320 Watt per channel @ 2 Ohm
640 Watt BTL mode @ 4 Ohm
950 Watt BTL mode @ 2 Ohm*
Input sensitivity (Power rating ref) : 0.2 V ÷ 5 V (RMS)
Xover functions (HIGH Pass or LOW Pass): (20 ÷ 175 Hz) & (50 ÷ 300 Hz)
Filter slope – Filter “Q”: 12 dB/oct – 0.7 (Stereo & Mono)
Size: 590x200x50 mm
Weight: 5,3 Kg

as200.4_user_manual

Specifications_AS200.4

Additional information

Numar canale	4
Producator	Gladen, Mosconi
Putere RMS	4x200W
Dimensiune	590x200x50 mm

Reviews

There are no reviews yet.

Be the first to review “Amplificator auto Mosconi Gladen AS 200.4 (24 volti)”

Compară rapid

Setari Amplificator auto Mosconi Gladen AS 200.4 (24 volti) Elimină Amplificator DD Audio M1D Elimină Remote control DD Audio C-RMT Elimină Amplificator DD Audio D6.500 Elimină Amplificator DD Audio D4.90 Elimină Amplificator DD Audio M2C Elimină

Nume Amplificator auto Mosconi Gladen AS 200.4 (24 volti) Elimină Amplificator DD Audio M1D Elimină Remote control DD Audio C-RMT Elimină Amplificator DD Audio D6.500 Elimină Amplificator DD Audio D4.90 Elimină Amplificator DD Audio M2C Elimină

Imagine

SKU GAS200.4-24v M1D C-RMT D6.500 D4.90 M2C

Rating

Preț 4.655,00 lei 2.670,00 lei 140,00 lei 2.670,00 lei 1.410,00 lei 3.600,00 lei

Stoc

In stoc

Valabilitate In stoc In stoc In stoc In stoc In stoc In stoc

Adaugă în coș

Add to cart

Descriere Amplificator de mare putere pe 4 canale, cu tehnologie SMD, 4x 200 Watt RMS / 4 ohm, versiune de 24V, dimensiune: 590x200x50 mm M1d - 1700w x 1 @ 14v D6.500-- RMS 100Wx4 + RMS 2x200w 4ohm 6-Channel D4 --- RMS 90Wx4 Class-D Full Range Amp M2c - 2400w x 1 @ 14v

Content

Amplificator Mosconi Gladen AS 200.4 (24 volti)

A / B class amplifier for the highest possible sound quality
4 channel amplifier available in Silver and White finishing
Power Rating: 200 Watt per channel @ 4 Ohm < 1% THD+N
Sn Ratio: > 86 dBA (ref: 1 Watt into 4 Ohm)

Specificații:

200 Watt per channel @ 4 Ohm
320 Watt per channel @ 2 Ohm
640 Watt BTL mode @ 4 Ohm
950 Watt BTL mode @ 2 Ohm*
Input sensitivity (Power rating ref) : 0.2 V ÷ 5 V (RMS)
Xover functions (HIGH Pass or LOW Pass): (20 ÷ 175 Hz) & (50 ÷ 300 Hz)
Filter slope – Filter “Q”: 12 dB/oct – 0.7 (Stereo & Mono)
Size: 590x200x50 mm
Weight: 5,3 Kg

as200.4_user_manual Specifications_AS200.4

Test Voltage	12 / 14.4
Channels	1
Cont Wattage @ 4ohm	N/A
Cont Wattage @ 2ohm	N/A
Cont Wattage @ 1ohm	1,200x1@12V / 1,700x1@14.4V
Dynamic Wattage	2,500x1
Max Current Draw - Amperage	170
S/N Ratio	>100dB
THD	<0.2%
Input Voltage Sensitivity	8 - 0.2
Pass-Through Output	Yes
Remote Subwoofer Control	Yes
Power Wire Guage In	1 x 0
Speaker Wire Gauge Out	10
Dimensions: in	13.77 x 6.88 x 2.14
Dimensions: mm	350 x 175 x 54.5
Shipping Weight - lbs	11

C-RMT - Remote Gain Control

Test Voltage	14.4
Channels	6
Cont Wattage @ 4ohm	(CH 1-4) 100x4 / 320x2 \| (CH 5-6) 200x2 / 560x1
Cont Wattage @ 2ohm	(CH 1-4) 160x4 / (CH 5-6) 280x2
Max Current Draw - Amperage	120
S/N Ratio	>90dB
THD	<0.2%
Input Voltage Sensitivity	6V ~ 0.2V
Pass-Through Output	No
Remote Subwoofer Control	No
Power Wire Guage In	4
Speaker Wire Gauge Out	12
Dimensions: in	13.7 x 4.9 x 1.8
Dimensions: mm	350 x 125 x 47

Test Voltage	14.4
Channels	4
Cont Wattage @ 4ohm	90x4 / 240x2
Cont Wattage @ 2ohm	120x4
Max Current Draw - Amperage	45
S/N Ratio	>80dB
THD	<0.3%
Input Voltage Sensitivity	200mV - 6V
Pass-Through Output	Yes
Remote Subwoofer Control	No
Power Wire Guage In	4
Speaker Wire Gauge Out	12
Dimensions: in	9 x 5 x 2
Dimensions: mm	233 x 125 x 47

Test Voltage	12 / 14.4
Channels	1
Cont Wattage @ 4ohm	N/A
Cont Wattage @ 2ohm	N/A
Cont Wattage @ 1ohm	1,700x1@12V / 2,400x1@14.4V
Dynamic Wattage	3,500x1
Max Current Draw - Amperage	250
S/N Ratio	100dB
THD	<0.02%
Input Voltage Sensitivity	8 - 0.2
Pass-Through Output	Yes
Remote Subwoofer Control	Yes
Power Wire Guage In	1 x 0
Speaker Wire Gauge Out	10
Dimensions: in	19.68 x 6.88 x 2.14
Dimensions: mm	500 x 175 x 54.5
Shipping Weight - lbs	15
