Numar canale	4
Producator	Gladen, Mosconi
Putere RMS	4x100W
Dimensiune	150x140x40 mm

Amplificator auto Mosconi Gladen D2 100.4 DSP

Name: Amplificator auto Mosconi Gladen D2 100.4 DSP
SKU: GD2100.4-DSP
Availability: InStock

SKU: GD2100.4-DSP

In stoc

3.180,00 lei

Amplificator de mare putere, cu tehnologie DSP, pe 4 canale, 4x 100 Watt RMS / 4 ohm, versiune de 12V, dimensiune: 150x140x40 mm

In stoc

Ți-a plăcut acest produs? Adaugă acum la favorite și urmărește produsul.

Adaugă la lista de dorințe

Prețuri Mici

Garantăm cel mai mic preț

Potrivire garantată

Întotdeauna piesa corectă

Experți interni

Cunoaștem produsele noastre.

Returnări ușoare

Rapid și fără bătăi de cap.

Category: Amplificatoare auto

Description

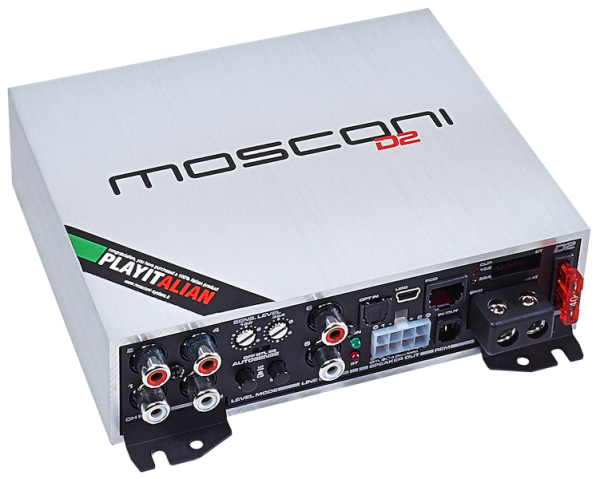

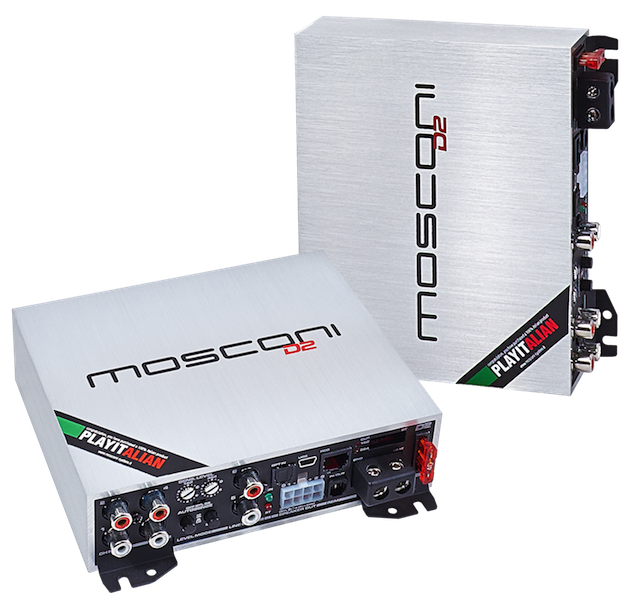

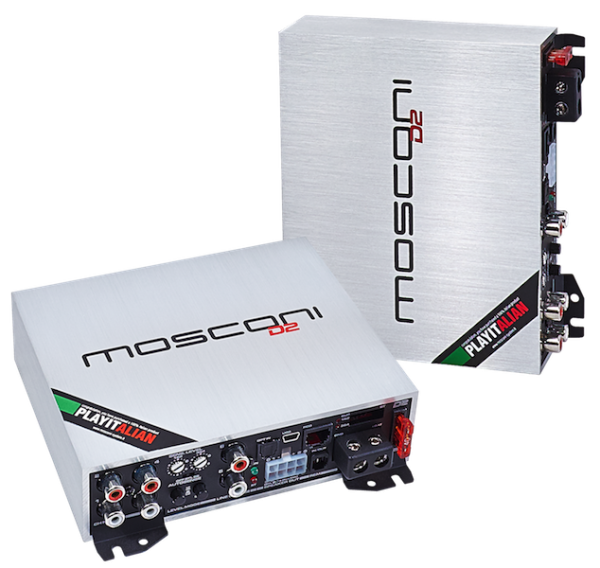

Amplificator Mosconi Gladen D2 100.4 DSP

D class 4 channel amplifier with on-board DSP + 2 digitally processed line outputs
DSP with SP-DIF digital input
AUX inputs suitable for hands-free set
Mobile navigation and external stereo sources
Available in Silver-Brushed finishing
Power Rating: 105 Watt @ 4 Ohm < 1% THD+N

AWARD:

Specificații:

100 Watt per channel @ 4 Ohm
130 Watt per channel @ 2 Ohm
Size: 150x140x40 mm
Weight: 1028 g

Input sensitivity (Power rating ref) :

0.75 V ÷ 12 V (Low Level)
1.9 V ÷ 31 V (High Level)

Xover functions (HIGH Pass or LOW Pass):

Subsonic Filter: (10 ÷ 20000 Hz)
Low Pass Filter: (10 ÷ 20000 Hz)
Slope (dB/Oct): 6-12 [up to 60 (CH1-2-3-4) or 48 (CH5-6), if cascaded]
Band pass allowed, Variable Q: 0.5 ÷ 40

Funcții speciale :

Remote Volume Control (optional)
Phase Inversion: 0° ÷ 180°
Time delay (ms): 0 ÷ 15 (0.02 steps)
Low Level / High Level imput mode (by switch)
Auto Sense (only in High Level mode)
Low Level Output (CH5/6)

D2-100.4-DSP-technical-details

USER-MANUAL-D2-100.4-DSP

WARNING_SHEET

Software

Additional information

Numar canale	4
Producator	Gladen, Mosconi
Putere RMS	4x100W
Dimensiune	150x140x40 mm

Reviews

There are no reviews yet.

Be the first to review “Amplificator auto Mosconi Gladen D2 100.4 DSP”

Compară rapid

Setari Amplificator auto Mosconi Gladen D2 100.4 DSP Elimină Amplificator DD Audio D5.500 Elimină Amplificator DD Audio DM500a Elimină Amplificator DD Audio DM2500a Elimină Amplificator DD Audio Z2C Elimină Amplificator DD Audio D5.1000 Elimină

Nume Amplificator auto Mosconi Gladen D2 100.4 DSP Elimină Amplificator DD Audio D5.500 Elimină Amplificator DD Audio DM500a Elimină Amplificator DD Audio DM2500a Elimină Amplificator DD Audio Z2C Elimină Amplificator DD Audio D5.1000 Elimină

Imagine

SKU GD2100.4-DSP D5.500 DM500a DM2500 Z2C D5.1000

Rating

Preț 3.180,00 lei 2.110,00 lei 950,00 lei 2.380,00 lei 22.470,00 lei 2.750,00 lei

Stoc

In stoc

Valabilitate In stoc In stoc In stoc In stoc In stoc In stoc

Adaugă în coș

Add to cart

Descriere Amplificator de mare putere, cu tehnologie DSP, pe 4 canale, 4x 100 Watt RMS / 4 ohm, versiune de 12V, dimensiune: 150x140x40 mm D5.500---RMS 90Wx4 + 500W 1ohm Class-D 5 Channel DM500--- RMS 500W 1ohm Class-D Monoblock DDDM2500 - 2500w 1Ω Class-D monoblock Z2C- 10,000W x1 @ 14V D5.1000-- RMS 90Wx4 + 1000W 1ohm Class-D 5 Channel

Content

Amplificator Mosconi Gladen D2 100.4 DSP

D class 4 channel amplifier with on-board DSP + 2 digitally processed line outputs
DSP with SP-DIF digital input
AUX inputs suitable for hands-free set
Mobile navigation and external stereo sources
Available in Silver-Brushed finishing
Power Rating: 105 Watt @ 4 Ohm < 1% THD+N

AWARD:

Specificații:

100 Watt per channel @ 4 Ohm
130 Watt per channel @ 2 Ohm
Size: 150x140x40 mm
Weight: 1028 g

Input sensitivity (Power rating ref) :

0.75 V ÷ 12 V (Low Level)
1.9 V ÷ 31 V (High Level)

Xover functions (HIGH Pass or LOW Pass):

Subsonic Filter: (10 ÷ 20000 Hz)
Low Pass Filter: (10 ÷ 20000 Hz)
Slope (dB/Oct): 6-12 [up to 60 (CH1-2-3-4) or 48 (CH5-6), if cascaded]
Band pass allowed, Variable Q: 0.5 ÷ 40

Funcții speciale :

Remote Volume Control (optional)
Phase Inversion: 0° ÷ 180°
Time delay (ms): 0 ÷ 15 (0.02 steps)
Low Level / High Level imput mode (by switch)
Auto Sense (only in High Level mode)
Low Level Output (CH5/6)
