Numar canale	6
Producator	Gladen, Mosconi
Putere RMS	6x80W
Dimensiune	200x145x40 mm

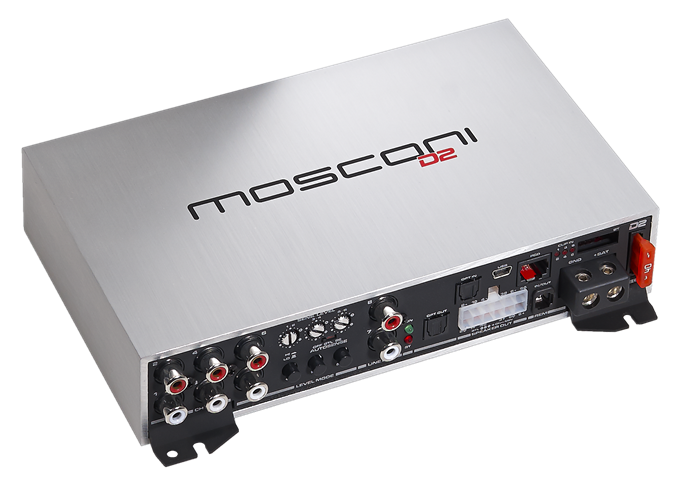

Amplificator auto Mosconi Gladen D2 80.6 DSP

Name: Amplificator auto Mosconi Gladen D2 80.6 DSP
SKU: GD280.6-DSP
Availability: InStock

SKU: GD280.6-DSP

In stoc

4.160,00 lei

Amplificator de mare putere, cu tehnologie DSP, pe 6 canale, 6x 80 Watt RMS / 4 ohm, versiune de 12V, dimensiune: 200x145x40 mm

In stoc

Ți-a plăcut acest produs? Adaugă acum la favorite și urmărește produsul.

Adaugă la lista de dorințe

Prețuri Mici

Garantăm cel mai mic preț

Potrivire garantată

Întotdeauna piesa corectă

Experți interni

Cunoaștem produsele noastre.

Returnări ușoare

Rapid și fără bătăi de cap.

Category: Amplificatoare auto

Description

Amplificator Mosconi Gladen D2 80.6 DSP

D class 6 channel amplifier with on-board DSP + 2 digitally processed line outputs
DSP with SP-DIF digital input
AUX inputs suitable for hands-free set
Mobile navigation and external stereo sources
Available in Silver-Brushed finishing
Power Rating: 105 Watt @ 4 Ohm < 1% THD+N

Specificații:

80 Watt RMS @ 4 Ohm
100 Watt RMS @ 2 Ohm
70W x 4 + 215W x 1 (Ch 5-6) @ 4 Ohm
Size: 150x140x40 mm
Weight: 1340 g

Input sensitivity (Power rating ref) :

0.27 V ÷ 8.5 V (Low Level)
0.7 V ÷ 22 V (High Level)

Xover functions (HIGH Pass or LOW Pass):

Subsonic Filter: (10 ÷ 20000 Hz)
Low Pass Filter: (10 ÷ 20000 Hz)
Slope (dB/Oct): 6-12 [up to 60 (CH1-2-3-4) or 48 (CH5-6-7-8), if cascaded]
Band pass allowed, Variable Q: 0.5 ÷ 40

Funcții speciale :

Remote Volume Control (optional)
Phase Inversion: 0° ÷ 180°
Time delay (ms): 0 ÷ 15 (0.02 steps)
Low Level / High Level imput mode (by switch)
Auto Sense (only in High Level mode)
Low Level Output (CH7/8)

DataSheetD2806DSP

User-Manual-D2-80.6DSP

WARNING_SHEET

Software

Additional information

Numar canale	6
Producator	Gladen, Mosconi
Putere RMS	6x80W
Dimensiune	200x145x40 mm

Reviews

There are no reviews yet.

Be the first to review “Amplificator auto Mosconi Gladen D2 80.6 DSP”

Compară rapid

Setari Amplificator auto Mosconi Gladen D2 80.6 DSP Elimină Amplificator DD Audio Z2C Elimină Amplificator DD Audio C4.60 Elimină Amplificator DD Audio C2.100 Elimină Amplificator DD Audio SS4B Elimină Amplificator DD Audio M4B Elimină

Nume Amplificator auto Mosconi Gladen D2 80.6 DSP Elimină Amplificator DD Audio Z2C Elimină Amplificator DD Audio C4.60 Elimină Amplificator DD Audio C2.100 Elimină Amplificator DD Audio SS4B Elimină Amplificator DD Audio M4B Elimină

Imagine

SKU GD280.6-DSP Z2C C4.60 C2.100 SS4B M4B

Rating

Preț 4.160,00 lei 22.470,00 lei 840,00 lei 840,00 lei 3.240,00 lei 8.130,00 lei

Stoc

In stoc

Valabilitate In stoc In stoc In stoc In stoc In stoc In stoc

Adaugă în coș

Add to cart

Descriere Amplificator de mare putere, cu tehnologie DSP, pe 6 canale, 6x 80 Watt RMS / 4 ohm, versiune de 12V, dimensiune: 200x145x40 mm Z2C- 10,000W x1 @ 14V 60w x 4ch @ 4Ω 100w x 2ch @ 4Ω SS4b - 250W x 2 @ 4Ω M4b - 5000w x 1 @ 14v

Content

Amplificator Mosconi Gladen D2 80.6 DSP

D class 6 channel amplifier with on-board DSP + 2 digitally processed line outputs
DSP with SP-DIF digital input
AUX inputs suitable for hands-free set
Mobile navigation and external stereo sources
Available in Silver-Brushed finishing
Power Rating: 105 Watt @ 4 Ohm < 1% THD+N

Specificații:

80 Watt RMS @ 4 Ohm
100 Watt RMS @ 2 Ohm
70W x 4 + 215W x 1 (Ch 5-6) @ 4 Ohm
Size: 150x140x40 mm
Weight: 1340 g

Input sensitivity (Power rating ref) :

0.27 V ÷ 8.5 V (Low Level)
0.7 V ÷ 22 V (High Level)

Xover functions (HIGH Pass or LOW Pass):

Subsonic Filter: (10 ÷ 20000 Hz)
Low Pass Filter: (10 ÷ 20000 Hz)
Slope (dB/Oct): 6-12 [up to 60 (CH1-2-3-4) or 48 (CH5-6-7-8), if cascaded]
Band pass allowed, Variable Q: 0.5 ÷ 40

Funcții speciale :

Remote Volume Control (optional)
Phase Inversion: 0° ÷ 180°
Time delay (ms): 0 ÷ 15 (0.02 steps)
Low Level / High Level imput mode (by switch)
Auto Sense (only in High Level mode)
Low Level Output (CH7/8)
